Product Description:

The product is designed to withstand extreme temperature conditions, with a storage temperature range of -30°C ~ +80°C. This makes it a reliable choice for applications that operate in harsh environments.

The TFT LCD Module is manufactured by LCD Mall, a leading brand in the display industry. The brand is known for its high-quality lcd panels, and this product is no exception. The device is carefully crafted to ensure that it delivers clear and sharp images with accurate color reproduction.

One of the standout features of the TFT LCD Module is its customized touch panel. This feature allows users to interact with the display in a more intuitive way. The touch panel is designed to be highly responsive, ensuring that users can easily navigate through menus and other user interfaces.

In summary, the TFT LCD Module is a reliable and high-performance display device that is perfect for a wide range of applications. Its high-quality lcd panels, customized touch panel, and ability to withstand extreme temperature conditions make it a great choice for industrial and commercial applications.

Features:

• Product Name: TFT LCD Module
• Backlight: 6 Chip White LED, 6S VF =19.2±1.0V; IF = 20mA
• Display type: 3.5inch TFT /Transmissive
• Interface: 24BIT - RGB+SPI FPC Connector
• Resolution: 320x240
• Operating Temp: -20°C ~ +70°C
• LVDS: Not specified
• LVDS: Not specified
• tft lcd screen: Yes

Technical Parameters:

This TFT LCD Module is a high-quality LCD display screen with touch screen features. It features a 320x240 resolution, a 3.5 inch LCD panel size, and a 24BIT - RGB+SPI FPC Connector interface with a pin number of 54. The panel brand is LCD Mall and the touch panel is customized. The backlight consists of 6 Chip White LED, 6S VF =19.2±1.0V; IF = 20mA, and the surface luminance is 300cd/m2. The operating temperature range is from -20°C to +70°C, and the display size is 76.9x63.9x3.2mm.

Applications:

The LMT035QV008C TFT LCD Module is a versatile product that can be used in a variety of different applications. It is commonly used in industrial control, medical equipment, automotive applications, and consumer electronics. The module is also used in instrumentation, communications equipment, and other applications that require a high-quality display.

One of the key features of this product is its high surface luminance of 300cd/m2, which makes it easy to read and view even in bright light conditions. The panel size of 3.5 inches is perfect for small to medium-sized displays, and the viewing angle of 12 O'Clock makes it easy to view from any angle.

The LMT035QV008C TFT LCD Module is available in large quantities, with a minimum order quantity of 500 pieces. It is packed in international standard packaging and has a delivery time of 2~5 weeks. Customers can choose from a range of payment methods, including T/T, West Union, Credit, and Paypal. With a supply ability of 1000000/month, customers can be sure that they will receive their orders on time and in the quantity they need.

This product is designed to withstand a wide range of temperatures, with a storage temperature range of -30°C to +80°C. This makes it suitable for use in a variety of environments and scenarios. Whether you need a reliable display module for industrial control, medical equipment, automotive applications, or consumer electronics, the LMT035QV008C TFT LCD Module from LCD Mall is an excellent choice.

Overall, the LMT035QV008C TFT LCD Module from LCD Mall is a high-quality, reliable product that is suitable for a wide range of applications. With its high surface luminance, versatile panel size, and durable construction, this LCD module is sure to meet your needs and exceed your expectations.

Customization:

Brand Name: LCD Mall

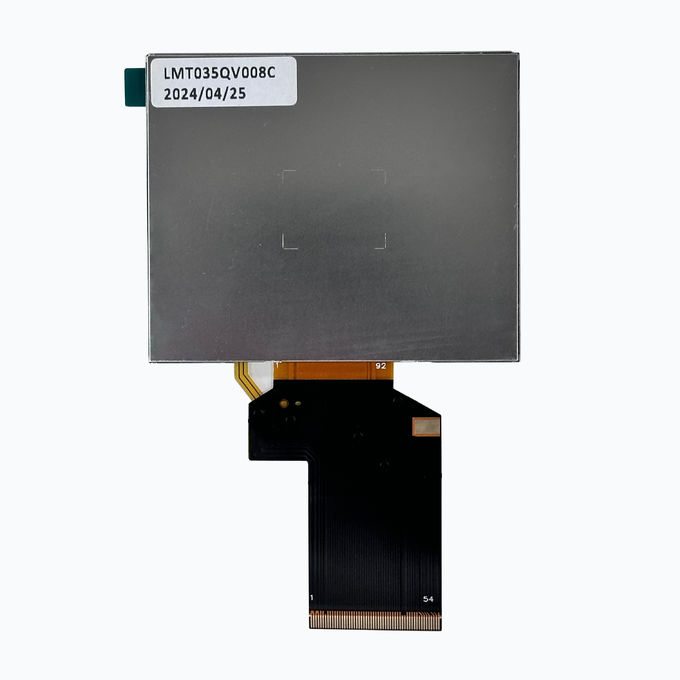

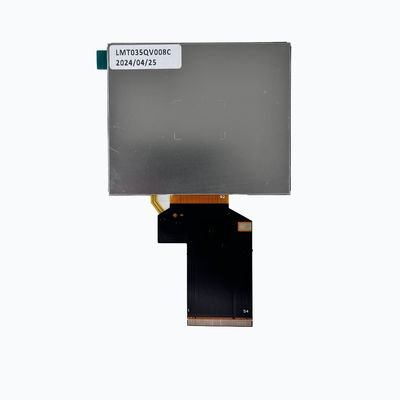

Model Number: LMT035QV008C

Place of Origin: GUA,CN

Certification: ISO9000, CE, ROHS

Minimum Order Quantity: 500pcs

Packaging Details: International standard packaging

Delivery Time: 2~5 weeks

Payment Terms: T/T;West Union;Credit;Paypal

Supply Ability: 1000000/month

Drive IC: HX8238D,VDD=3.3V

Panel Size: 3.5 Inch

Storage Temp: -30°C ~ +80°C

Panel Brand: LCD Mall

Interface: 24BIT - RGB+SPI FPC Connector

This touch lcd module product can be customized according to the needs of customers. The touch screen feature adds an interactive aspect to the display. Order a minimum of 500pcs with a delivery time of 2~5 weeks. International standard packaging ensures safe delivery. Payment can be made via T/T, West Union, Credit or Paypal. With a supply ability of 1000000/month, rest assured that your demand can be met. The drive IC used is the HX8238D with a VDD of 3.3V. The panel size is 3.5 inches, and the storage temp ranges from -30°C to +80°C. The panel brand is LCD Mall, and the interface is a 24BIT - RGB+SPI FPC Connector.

Support and Services:

The TFT LCD Module product technical support and services include:

• Assistance with installation and setup of the product
• Troubleshooting and diagnosis of any technical issues
• Repair and replacement of defective components
• Technical consultations for customization and optimization of the product
• Product training and education for users and technicians

Packing and Shipping:

Product Packaging:

• One TFT LCD Module
• Protective foam padding
• User manual

Shipping:

• Shipped via UPS Ground
• Estimated delivery time: 3-5 business days
• Tracking number provided

FAQ:

Q: What is the brand name of this product?

A: The brand name of this product is LCD Mall.

Q: What is the model number of this product?

A: The model number of this product is LMT035QV008C.

Q: Where is this product made?

A: This product is made in GUA,CN.

Q: What certifications does this product have?

A: This product has ISO9000, CE, and ROHS certifications.

Q: What is the minimum order quantity for this product?

A: The minimum order quantity for this product is 500pcs.

Q: What are the packaging details for this product?

A: The packaging details for this product are international standard packaging.

Q: How long does delivery take for this product?

A: Delivery time for this product is 2~5 weeks.

Q: What are the payment terms for this product?

A: The payment terms for this product are T/T, West Union, Credit, and Paypal.

Q: What is the supply ability for this product?

A: The supply ability for this product is 1000000/month.
