TFT LCD Module
Created with Pixso. 7 Inch TFT LCD Module 1024x600 Display For Automotive With CPT Touch IPS Wide Viewing Angle

7 Inch TFT LCD Module 1024x600 Display For Automotive With CPT Touch IPS Wide Viewing Angle

Brand Name: LCD Mall
Model Number: LMT070WS006U-FC023
MOQ: 500pcs
Delivery Time: 2~4 weeks
Payment Terms: T/T;Western Union;Paypal;L/C
Detail Information
Place of Origin:
GUA,CN
Certification:
CE ISO9001 ROHS
Type:
TFT
Display Size:
7 Inch
LCD Type:
TFT LCD
Direction:
All
Interface:
RGB
Driver IC:
ILI6150+ILI5121

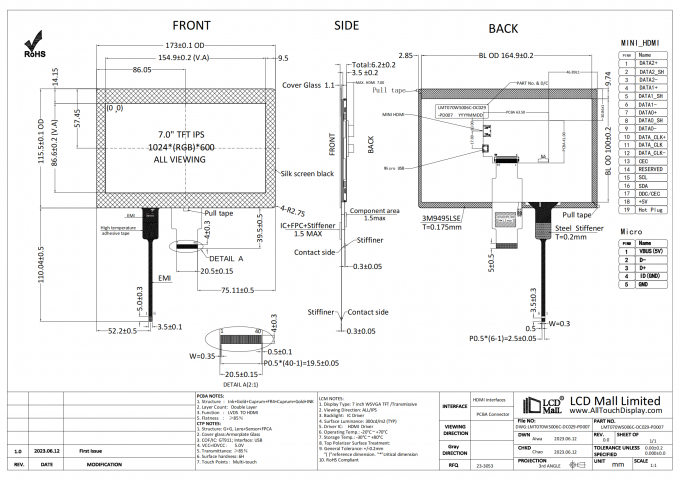

Outline Dimension:
165.25x100.15x8.7mm
Active Area:
154.21x85.92mm
Operating Temperature:
-20~+70
Luminance:
1800cd
Touch Panel:
CTP
Resolution:
1024*600
Port:
Shenzhen
Packaging Details:
International standard export packing
Supply Ability:
100000pcs/month
Highlight:

4l interface medical tft lcd with CPT touch

,

4l interface medical tft lcd display module

,

medical tft lcd display module 4l interface

Product Description

7 Inch TFT LCD Display Module with CPT touch IPS Wide Viewing Angle 1024x600 Resolution for Automotive

Features:
Product name 7 Inch TFT LCD Display Module with CPT touch IPS Wide Viewing Angle 1024x600 Resolution for Automotive
Interface LVDS interface
Resolution 1024x600
brightness 1800 nits
Viewing Angle All/IPS
TP type CTP



7 Inch TFT LCD Module 1024x600 Display For Automotive With CPT Touch IPS Wide Viewing Angle 0



Description:

The 7-inch IPS LCD display with 1024x600 resolution, LVDS interface, and 1800 nits high brightness is a high-quality display solution that offers exceptional visual performance. Here are some key features and benefits of this LCD display:

  • High Resolution: The display has a resolution of 1024x600 pixels, providing crisp and clear visuals for a range of content, including videos, images, and text.
  • IPS (In-Plane Switching) Technology: The IPS panel offers wide viewing angles, ensuring consistent visual quality from multiple viewing positions. This makes it suitable for shared viewing scenarios, such as in meetings or group settings.
  • LVDS Interface: The LVDS interface provides a high-speed and reliable connection, ensuring smooth video performance with minimal artifacts or delays.
  • High Brightness: The display offers a brightness of 1800 nits, making it suitable for use in high-intensity environments or under bright lighting conditions. This ensures bright and vibrant visuals that are legible even in bright environments.
  • Versatile Application: The LCD display is suitable for use in a variety of professional and industrial applications, including digital signage, medical equipment, point-of-sale terminals, control panels, and other areas that require high-quality visual displays.

In summary, the 7-inch IPS LCD display with 1024x600 resolution, LVDS interface, and 1800 nits high brightness offers an exceptional visual performance for a range of demanding applications. Its advanced features and wide viewing angles make it an excellent choice for professional and industrial settings that require bright, clear visuals and consistent performance.



Packing and Shipping:

Product Name: TFT LCD Display
Packaging and Shipping

Our TFT LCD Display is carefully packaged to ensure safe and secure delivery to our customers. The packaging materials are chosen to protect the display from any potential damage during transportation.

The display is first placed in a plastic bag to prevent any scratches or dust accumulation. It is then placed in a foam insert that provides cushioning and shock absorption. The foam insert is placed in a sturdy cardboard box, which is then sealed with heavy-duty tape for added protection.

For international shipping, the display is placed in a wooden crate to provide extra protection during long distance transportation. The crate is also sealed with heavy-duty tape and marked with appropriate labels for easy identification.

We work with reliable shipping companies to ensure prompt and safe delivery of our products. Customers can choose from various shipping options based on their preferences and needs.

Once the display is shipped, customers will receive a tracking number to track their package and estimated delivery date. Our customer service team is also available to provide assistance and updates on the shipping status.

At TFT LCD Display, we strive to provide the best packaging and shipping services to ensure our products reach our customers in perfect condition.

FAQ:

  • Q: What is the brand name of this product?
    A: The brand name of this product is LCD Mall.
  • Q: What is the model number of this product?
    A: The model number of this product is LMT070WS006U-FC023.
  • Q: Where is this product made?
    A: This product is made in GUA,CN.
  • Q: What certifications does this product have?
    A: This product is certified with ISO9000, CE, and ROHS.
  • Q: What is the minimum order quantity for this product?
    A: The minimum order quantity for this product is 1 piece.
  • Q: How is this product packaged?
    A: This product is packaged in international standard packaging.
  • Q: How long is the delivery time for this product?
    A: The delivery time for this product is 2 to 5 weeks.
  • Q: What are the payment terms for this product?
    A: The payment terms for this product are T/T, West Union, Credit, and Paypal.
  • Q: What is the supply ability for this product?
    A: The supply ability for this product is 1 million units per month.
