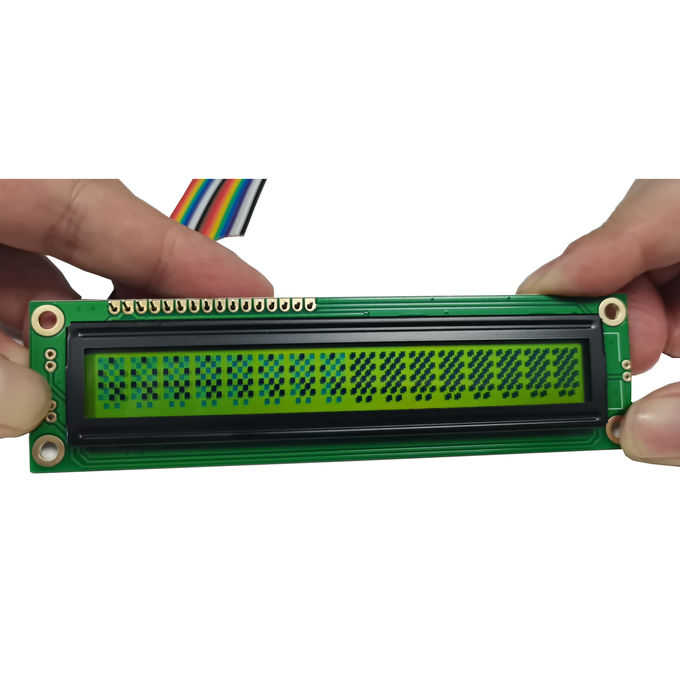

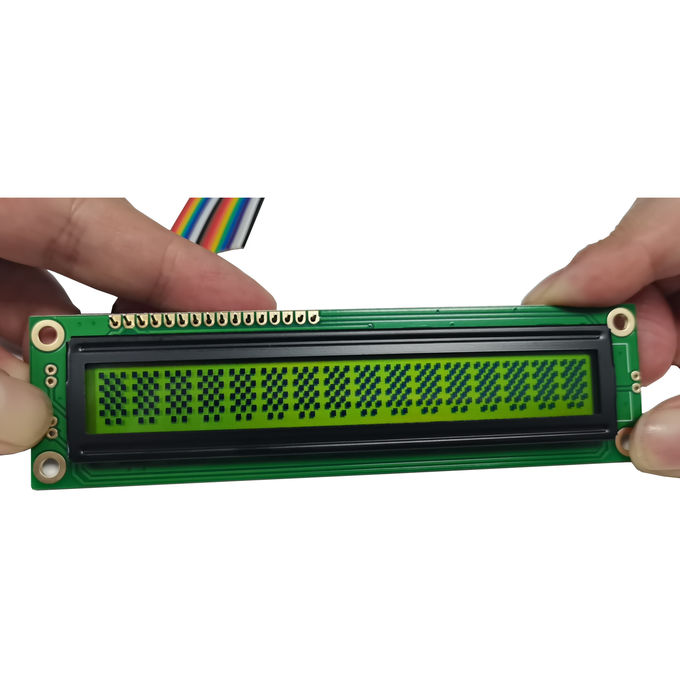

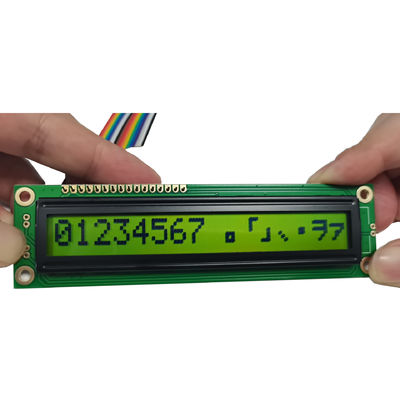

Customized Blue Yellow Green Back Light 16 Characters Lcd Module 1602 Cog 20X4 16X2 8X1 Character 0801 Lcd 4X20 16X4

PRODUCT DESCRIPTION

Features

1. Introduction

The COG (Chip On Glass) LCD module is a type of liquid crystal display that integrates the driving circuit directly onto the glass substrate, providing a more compact and efficient solution for display applications. This report provides an overview of the COG LCD module, including its operating principles, advantages, and potential applications.

2. Operating Principles

The COG LCD module operates based on the electro-optical properties of liquid crystals. When a voltage is applied across the liquid crystal layer, the molecules within the liquid crystal reorient themselves, changing the light transmission properties of the display. In the COG LCD module, the driving circuit is integrated onto the glass substrate, which reduces the number of components required and improves the overall system efficiency.

3. Advantages

The COG LCD module offers several advantages over traditional LCD modules:

3.1 Compact Size: The integration of the driving circuit onto the glass substrate allows for a more compact design, reducing the overall size and weight of the display module.

3.2 Efficient Power Usage: The direct integration of the driving circuit onto the glass substrate eliminates the need for external driver ICs, reducing power consumption and heat generation.

3.3 Improved Reliability: The elimination of external components reduces the potential for component failures, improving the overall reliability of the display module.

3.4 Cost Savings: The elimination of external components and the use of standard glass substrates reduces the overall cost of the COG LCD module compared to traditional LCD modules.

4. Potential Applications

The COG LCD module has potential applications in various fields, including:

4.1 Mobile Devices: The compact size and efficient power usage of the COG LCD module make it suitable for use in mobile devices such as smartphones, tablets, and wearables.

4.2 Industrial Applications: The high reliability and cost-effective nature of the COG LCD module make it suitable for use in industrial applications such as instrument panels, control panels, and automation systems.

4.3 Automotive Displays: The COG LCD module's ability to withstand harsh environments and its high-quality display make it suitable for use in automotive displays such as instrument clusters and center consoles.

5. Conclusion

The COG LCD module represents a significant advancement in display technology, offering a more compact, efficient, and reliable solution for a wide range of applications. Its potential to reduce costs while maintaining high-quality displays makes it a promising technology for various markets, including mobile devices, industrial applications, and automotive displays.

FAQ

1.Q: Which sizes you can produce?
A: Normally, we produce 0.96~55 inch display. but If customers need other sizes,our R&D also will do best to develop.

2.Q: Do you support touch panel?
A: Yes, we can support capacitive touch panel or resistance touch panel for lcd module.

3.Q: Do you support customizations?
A: Yes, we accept OEM and ODM. We can provide touch panel, control board and the special shapes according to customers' requirements.

4.Q: How long is the delivery time?
A: For samples,usually is 2 weeks,for bulk order,is about 3~5 weeks.

5.Q:How about the warranty?
A: We supply one year after-sale services

6.Q: What is the MOQ?
A: We supply 1pcs MOQ for customers to test the quality.

7.Q: What package do you have?

A:Usually is Bubble Bag + Blister + Foam Box + Carton
