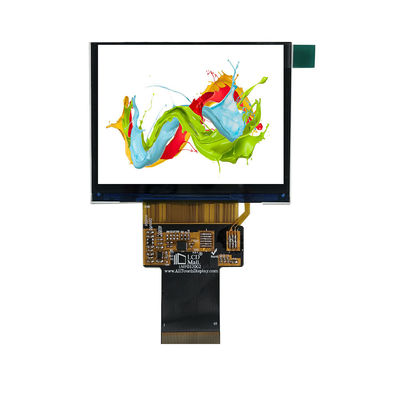

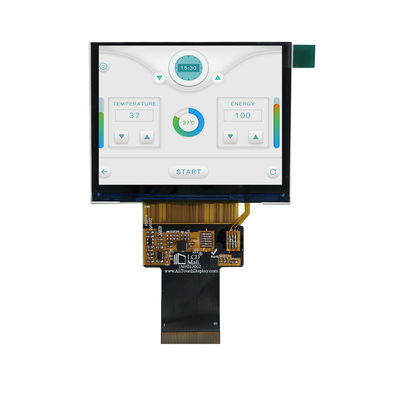

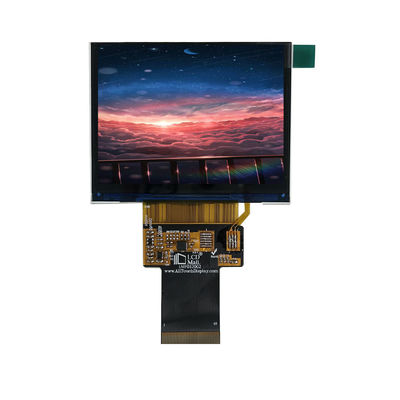

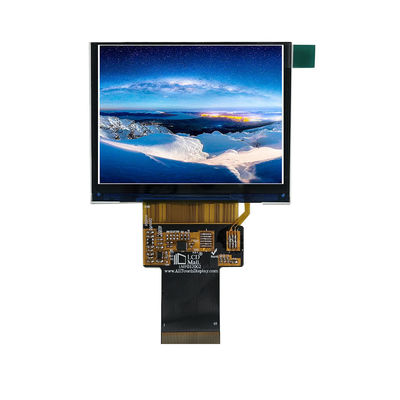

3.17 Inch Color LCD Screen Panel with 1024*768 Resolution and Wide Viewing Angle

Name: 3.17 Inch Color LCD Screen Panel with 1024*768 Resolution and Wide Viewing Angle
Brand: Shenzhen LCD Mall Limited
SKU: LMT032XG002H
Price: Negotiable USD
Availability: InStock

Brand Name:	LCD Mall Limited
Model Number:	LMT032XG002H
MOQ:	500pcs
Price:	depends on QTY
Delivery Time:	5~8 work days
Payment Terms:	T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001 ROHS CE

Display Type:

3.2 Inch XGA TFT /Transmissive

Brand:

LCD MALL Limited

Viewing Direction:

ADS FULL Viewing

Backlight:

12 Chip White LED, 4S3P VF =9.6+0.5.1F=80

Surface Luminance:

500cd/m2(TYP)

DIVER IC:

JD9168

Display Colors:

16.7M

Technology Type:

A-Si

General Tolerance:

+/-0.2mm

Interface:

RGB

Packaging Details:

Carton:40*30*21(cm)

Supply Ability:

1000000PCS/month

Highlight:

3.17 Inch Color LCD Screen Panel

1024*768 Color LCD Screen Panel

Product Description

3.17" TFT LCD Display IPS 1024*RGB*768

Feature	Spec
Size	3.17inch
Resolution	1024(horizontal)*768(Vertical)
Interface	RGB
Connect type	ZIF-0.5 PITCH 40PIN
Display Colors	16.7M
Technology type	a-Si
Viewing Direction	ALL VIEW
Pixel Configuration	R.G.B. Vertical Stripe
Display Mode	Normally Black
Driver IC	JD9168
LCM (W x H x D) (mm)	69.6(H) x 55.5(V) x 2.1(T)

_08

_07 _01 3.17 Inch Color LCD Screen Panel with 1024*768 Resolution and Wide Viewing Angle 5 _09 _10 _11 _13 _15 _17 _19

Q1. Where can I get the datasheet and other technical files?

Unfortunately, can not Support upload/download the files for the time being, please contact with our sales

chat on Trade Manager or send me a email , we will send the datasheet by mail.

Q2. Is there a Touch Panel (Touch screen) on the display?

Yes,We can offer you the Resistive Touch Panel or Capacitive Touch Panel if you need.

Q3. Is there a possibility to make a more brighter display?

Yes, please share us more details about the project requirements, and we will try to find a Solution and Customized

high brightness backlight for you. And make it sunlight readable.

Q4. Never End of Supply, Our Long-term Continuity Supply Warranty

We can understand you probably worry whether we still offer the display after your long development time. We can

promise to every customer to every product we sell on this web store. We promise the long terms continuity supply

and would never end supply.

Q5. What is covered under warranty and for how long?

All products are covered under our limited warranty, which provides all products are free of functional defects for a

period of one year from the date of shipment and all products are free of visual defects and missing parts for a period

of 30 days from the date of shipment. If a product was damaged during shipping or the order is incorrect, you must

notify us within 7 days of receipt.

Q6. I am new for developing LCD modules.

Please don't worry about it. Our R&D will help you if you have any problems when you try to power on the display.

We will send you the complete development documentation (datasheet) and help you easy to get started.

Q7. How long is the delivery Time?

Usually delivery time is 4~5 weeks,mainly depends on the quantity of project.

_21
