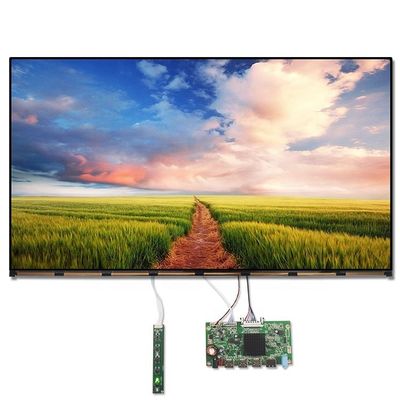

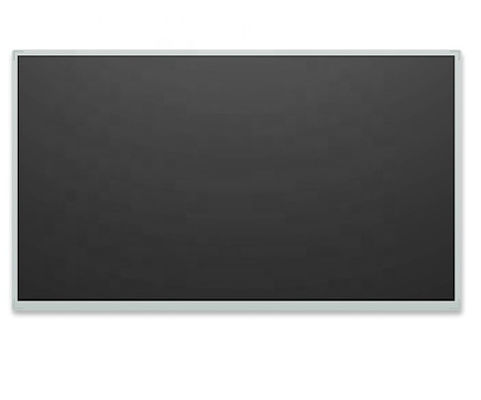

23.8 Inch 3840*2160 Pixels TFT LCD Display Panel For Desktop Monitor Active Matrix Liquid Crystal Display

Name: 23.8 Inch 3840*2160 Pixels TFT LCD Display Panel For Desktop Monitor Active Matrix Liquid Crystal Display
Brand: LCD Mall
SKU: customized
Rating: 4.9 (152 reviews)

Brand Name:	LCD Mall
Model Number:	customized
MOQ:	500pcs
Delivery Time:	2~4 weeks
Payment Terms:	T/T;Western Union;Paypal;L/C

Detail Information

Product Description

Detail Information

Place of Origin:

GUA,CN

Certification:

CE ISO9001 ROHS

Type:

Lcm

Display Size:

23.8

Supplier Type:

OEM/ODM

Model No:

LM238LUH02NS

Resolution:

3840 * 2160 Pixels

Brightness(cd/m²):

300 Cd/m2 ( Center 1 Point, Typ.)

Touch Surface:

23.8 Inches(60.47cm) (Aspect Ratio 16:9)

LCD TYPE:

Active Matrix Liquid Crystal Display

LCM OD Sizes:

545.0(H) X 323.4(V) X 12.5(D) Mm (Typ.)

Viewing Direction:

View Angle Free (R/L 178(Typ.), U/D 178(Typ.))

LCM Interface:

EDP Interface

Port:

Shenzhen

Packaging Details:

International standard export packing

Supply Ability:

100000pcs/month

Highlight:

300cd m2 tft lcd with ctp 3.4 inch

Customized 23.8 inch LCD Display Panel

Desktop Monitor Active Matrix Liquid Crystal Display

Product Description

23.8 Inch 3840*2160 Pixels TFT LCD Display Panel For Desktop Monitor Active Matrix Liquid Crystal Display

Product Description

This 23.8-inch 3840x2160 pixels TFT LCD display panel is designed for use as a desktop monitor. It features active matrix liquid crystal display (AMLCD) technology, which provides high-quality visuals with excellent color reproduction and viewing angles.

The display panel has a resolution of 3840x2160 pixels, which is also known as 4K resolution, providing extremely detailed and sharp images. It is suitable for a range of professional and consumer applications, such as graphic design, video editing, and gaming, where high-resolution visuals are essential.

The TFT (Thin-Film Transistor) technology offers fast response times and low power consumption, ensuring smooth and accurate display of dynamic content. The active matrix architecture uses thin-film transistors located at each pixel to enhance the panel's performance, especially in terms of grayscale and response time.

This display panel is suitable for use in desktop monitors that require high-resolution visuals for professional or consumer use. It offers excellent color reproduction and viewing angles, making it suitable for a range of applications where accurate and detailed visuals are essential.

Active Screen Size	23.8 inches(60.47cm)(Aspect ratio 16:9)
Outline Dimension	545.0(H)X323.4(V)x12.5(D)mm (Typ.)
Pixel Pitch	0.13725mm X 0.13725mm
Pixel Format	3840 horiz.By 2160 vert.pixels RGB stripes arrangement
Color Depth	1.07 Billion colors,10Bit (8bIT +A-FRC
Luminance,White	300cd/m2 (Center 1 point,Typ.)
Viewing angle(CR>10)	View Angle Free (R/L 178(Typ.),U/D 178(Typ.))
Power Consumption	Total 31.1 Watt(6.7Watt@VLCD 23.4 Watt @Is=120mA
Weight	Typ:1850g
Display operating mode	Transmassive mode,normaly black
Panel Type	Reverse type
Surface Treatment	Advanced Anti-glare treatment of the front polarizer (3h)

23.8 Inch 3840*2160 Pixels TFT LCD Display Panel For Desktop Monitor Active Matrix Liquid Crystal Display 0

Packing and Shipping:

TFT LCD With CTP Packaging and Shipping

Our TFT LCD with CTP product is carefully packaged to ensure safe delivery to our customers.

Packaging Details

Each LCD screen is individually wrapped in a protective film to prevent scratches or damage during transit.
The LCD screens are then placed in a foam-lined box for added protection.
The CTP (Capacitive Touch Panel) is packaged separately in a foam-lined box.
The LCD screen and CTP are then placed together in a larger box and secured with additional foam padding.
The box is labeled with product information, handling instructions, and a barcode for easy tracking.

Shipping Methods

We offer various shipping methods to accommodate the needs of our customers:

Standard shipping: Delivery within 5-7 business days.
Express shipping: Delivery within 2-3 business days.
Air freight: For urgent orders, we offer air freight with delivery within 1-2 business days.
Sea freight: For larger orders, we offer sea freight with delivery within 20-30 business days.

Customers can choose their preferred shipping method during the checkout process.

For international orders, please note that customers are responsible for any customs fees or taxes incurred during shipping.

FAQ:

Q: What is the brand name of this product?
A: The brand name of this product is LCD Mall.
Q: What is the model number of this product?
A: The model number of this product is customized.
Q: Where is this product manufactured?
A: This product is manufactured in GUA, CN (China).
Q: What certifications does this product have?
A: This product is certified with ISO9000, CE, and ROHS.
Q: What is the minimum order quantity for this product?
A: The minimum order quantity for this product is 1 piece.

Q: How is this product packaged?
A: This product is packaged in international standard packaging.
Q: How long is the delivery time for this product?
A: The delivery time for this product is 2-5 weeks.
Q: What payment methods are accepted for this product?
A: This product can be paid for through T/T, West Union, Credit, or Paypal.
Q: What is the supply ability of this product?
A: The supply ability of this product is 1,000,000 units per month.
