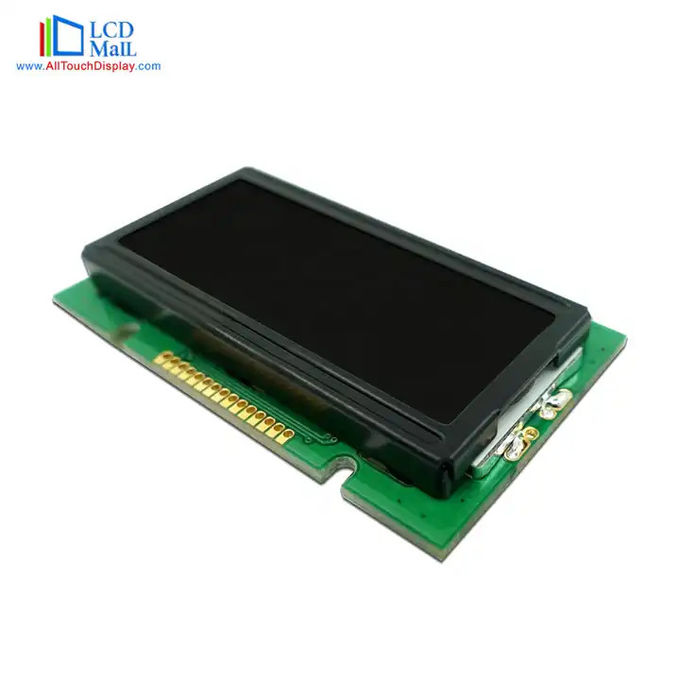

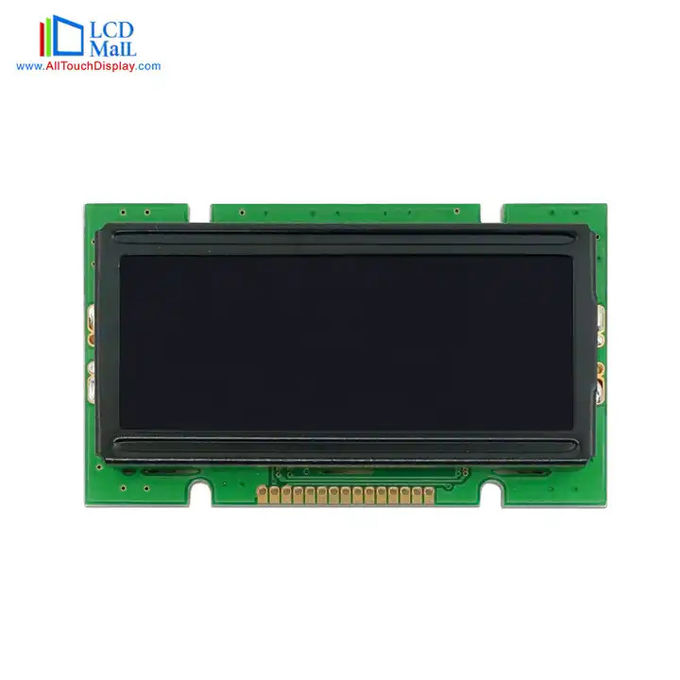

8BIT Bus MPU Interface Graphic LCD Display Monochrome LCD Panel 12232 DOTS

Name: 8BIT Bus MPU Interface Graphic LCD Display Monochrome LCD Panel 12232 DOTS
Brand: LCD Mall
SKU: LM12232SMB01B
Rating: 4.5 (183 reviews)

Brand Name:	LCD Mall
Model Number:	LM12232SMB01B
MOQ:	500pcs
Price:	Negotiation
Delivery Time:	2~4 weeks
Payment Terms:	T/T;Western Union;Paypal;L/C

Detail Information

Product Description

Detail Information

Place of Origin:

GUA,CN

Certification:

CE ISO9001 ROHS

Type:

Graphic LCD Module

Interface:

8BIT Bus MPU Interface

Viewing Direction:

6 O'clck

Dot Size (W*H):

0.36*0.42mm

Module Dimension:

80.0(W) * 36.0(H) *12.0(Max)(T)

Outline Dimension:

68.6(L) *27.5(W) * Max 7.4(T)mm

Backlight Type:

Side White

Brand:

LCD Mall

Packaging Details:

International standard export packing

Supply Ability:

100000pcs/month

Highlight:

8BIT bus MPU interface Graphic LCD Display

8BIT bus MPU interface monochrome lcd panel

Monochrome LCD Display 12232 DOTS

Product Description

Graphic Dot Matrix STN Liquid Crystal Module Monochrome LCD Display

PRODUCT DESCRIPTION

8BIT Bus MPU Interface Graphic LCD Display Monochrome LCD Panel 12232 DOTS 0

Graphic Dot Matrix STN Liquid Crystal Module Monochrome LCD Display

Display type	12232 DOTS
Viewing Direction	6 o'olock
Backlight Type	side white
Interface	8BIT bus MPU interface
Driver IC	SBN1661G or eqv
Outline Dimension	68.6(L) 27.5(W) Max 7.4(T)mm
Viewing Area	61(L) *18( W)mm
Dot Size (W*H)	0.36*0.42mm

8BIT Bus MPU Interface Graphic LCD Display Monochrome LCD Panel 12232 DOTS 1

8BIT Bus MPU Interface Graphic LCD Display Monochrome LCD Panel 12232 DOTS 4

8BIT Bus MPU Interface Graphic LCD Display Monochrome LCD Panel 12232 DOTS 5

8BIT Bus MPU Interface Graphic LCD Display Monochrome LCD Panel 12232 DOTS 6

8BIT Bus MPU Interface Graphic LCD Display Monochrome LCD Panel 12232 DOTS 7

8BIT Bus MPU Interface Graphic LCD Display Monochrome LCD Panel 12232 DOTS 8

8BIT Bus MPU Interface Graphic LCD Display Monochrome LCD Panel 12232 DOTS 9

8BIT Bus MPU Interface Graphic LCD Display Monochrome LCD Panel 12232 DOTS 10
